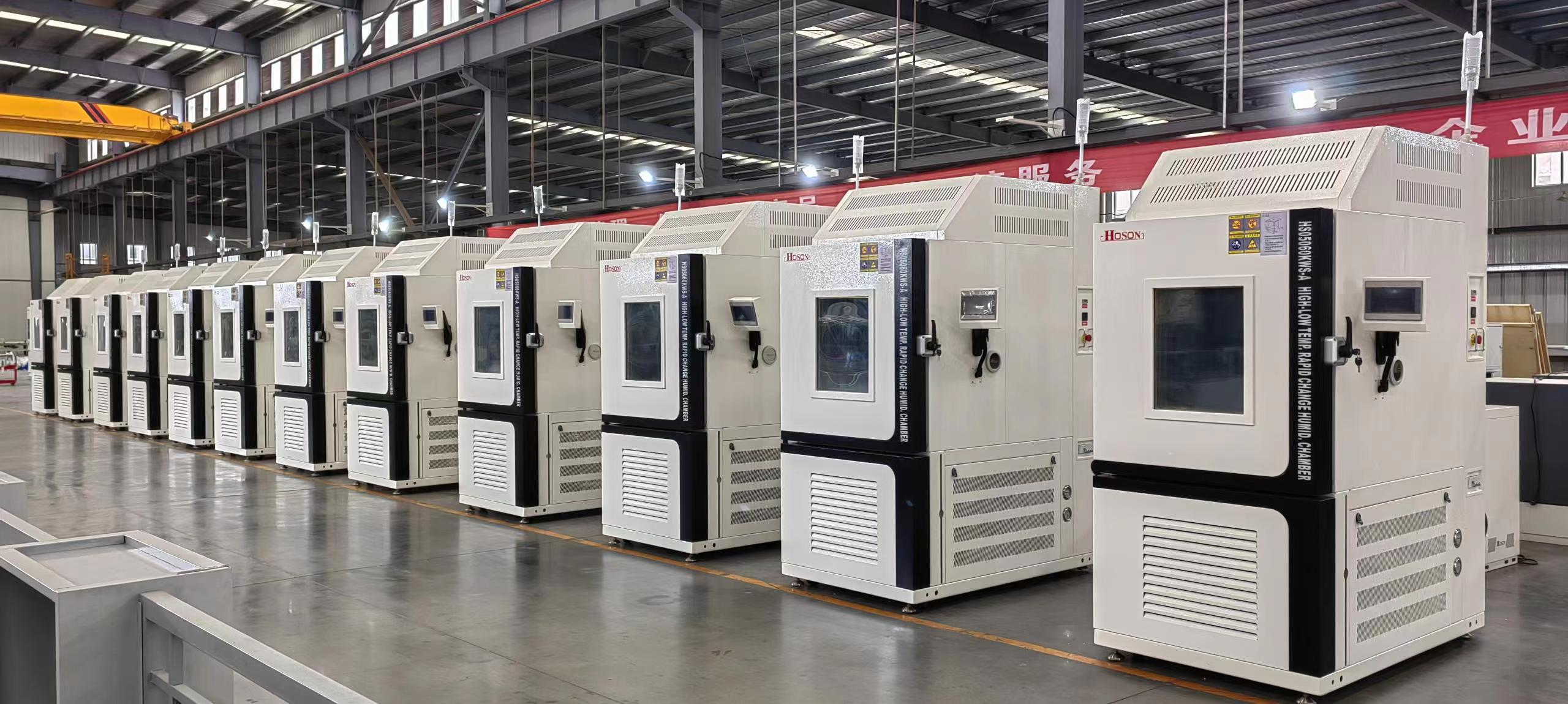

High Low Temperature Test Chamber
High low temperature test chamber application This series apply to cold test and low temperature storage for electrotechnical products, materials, parts in space flight and aviation, IT, electron, instruments, etc. High low temperature test chamber details Model: WGD402; Internal volume: 210L; Working room dimension: 500×600×700mm(D×W×H); Outside dimension: 1140×1030×1560mm(D×W×H); Power supply: 380V±10%,50Hz±1. Three phase four wire+ground lead, protective ground resistance is less than 4Ω; Weight: 500KG; Temperature range: -70～+150℃(Adjustable); Temperature fluctuation: ≤±0.5℃; Temperature deviation: ±2℃; Rate of temperature fall(Average): ≥1℃/min; Noise: 65dB. Power: 5KW. High and low temperature test chamber structure Material: Outside material is High quality coldroll steel sheet with electrostatic powder coating treatment. Inner chamber adopts SUS304 stainless steel plate. Component: This equipment integrates its main box, refrigerating unit and electric control parts. Unit is at the bottom of main box, control cabinet is on the right, blower motor is at the top and low temperature pipe section is installed at the top of its back.The main box includes working room and airconditioning chamber, which contains fan blade, heater, evaporator and sensor from top to […]
