Tag Archives: high-low temperature test chamber

August 21, 2018

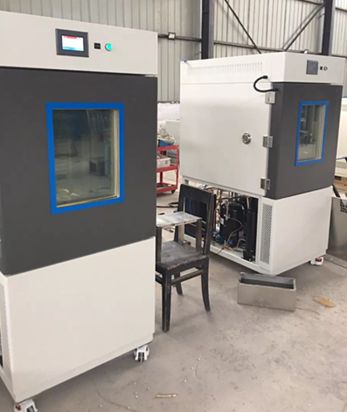

High Low Temperature Test Chamber

 High low temperature test chamber application This series apply to cold test and low temperature storage for electrotechnical products, materials, parts in space flight and aviation, IT, electron, instruments, etc. High low temperature test chamber details Model: WGD402; Internal volume: 210L; Working room dimension: 500×600×700mm(D×W×H); Outside dimension: 1140×1030×1560mm(D×W×H); Power supply: 380V±10%,50Hz±1.  Three phase four wire+ground lead, protective ground resistance is less than 4Ω; Weight: 500KG; Temperature range: -70～+150℃(Adjustable); Temperature fluctuation: ≤±0.5℃; Temperature deviation: ±2℃; Rate of temperature fall(Average): ≥1℃/min; Noise: 65dB. Power: 5KW. High and low temperature test chamber structure Material: Outside material is High quality coldroll steel sheet with electrostatic powder coating treatment. Inner chamber adopts SUS304 stainless steel plate. Component: This equipment integrates its main box, refrigerating unit and electric control parts. Unit is at the bottom of main box, control cabinet is on the right, blower motor is at the top and low temperature pipe section is installed at the top of its back.The main box includes working room and airconditioning chamber, which contains fan blade, heater, evaporator and sensor from top to […]

High and low temperature test chamber
September 27, 2017

High and low temperature test chamber

High and low temperature test chamber application This series apply to cold test and low temperature storage for electrotechnical products, materials, parts in space flight and aviation, IT, electron, instruments, etc. High and low temperature test chamber details Model: WGD701; Internal volume: 130L; Working room dimension: 400×500×650mm(D×W×H); Boundary dimension: 1135×800×1694mm(D×W×H); Power supply: 380V±10%,50Hz±1.  Three phase four wire+ground lead, protective ground resistance is less than 4Ω; Weight: 450KG; Temperature range: -70～+150℃(Adjustable); Temperature fluctuation: ≤±0.5℃; Temperature deviation: ±2℃; Rate of temperature fall(Average): ≥1℃/min; Noise: 65dB. Power: 6.5KW. High and low temperature test chamber structure Material: Outside material is High quality coldroll steel sheet with electrostatic powder coating treatment. Inner chamber adopts imported SUS304 stainless steel plate. Component Part: […]

August 15, 2017

Temperature and Humidity Chamber

Temperature and Humidity Chamber Application Widely used in accelerated damp heat tests and alternating temperature tests for materials, equipment and other parts in electrical, electronic, aerospace, aviation, instrumentation and other industries in order to evaluate the performance of the trial target under given environmental conditions. Temperature and Humidity Chamber Details 32-digit Intelligent Programmable Controller High […]

June 30, 2017

Temperature and Humidity Testing Chamber

Temperature and Humidity Testing Chamber Application Widely used in accelerated damp heat tests and alternating temperature tests for materials, equipment and other parts in electrical, electronic, aerospace, aviation, instrumentation and other industries in order to evaluate the performance of the trial target under given environmental conditions. Temperature and Humidity Testing Chamber Details 32-digit Intelligent Programmable […]
