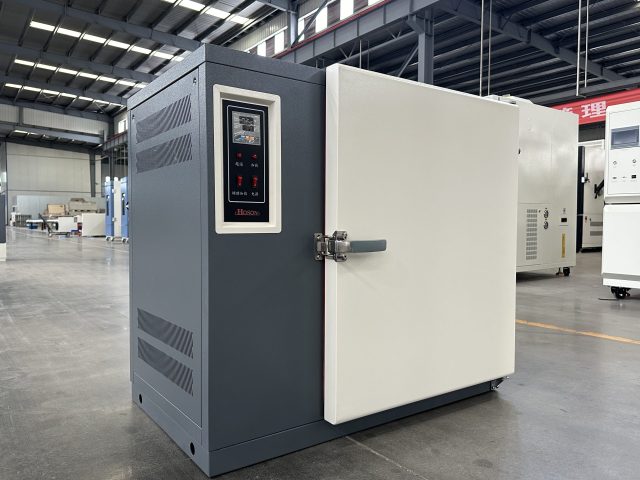

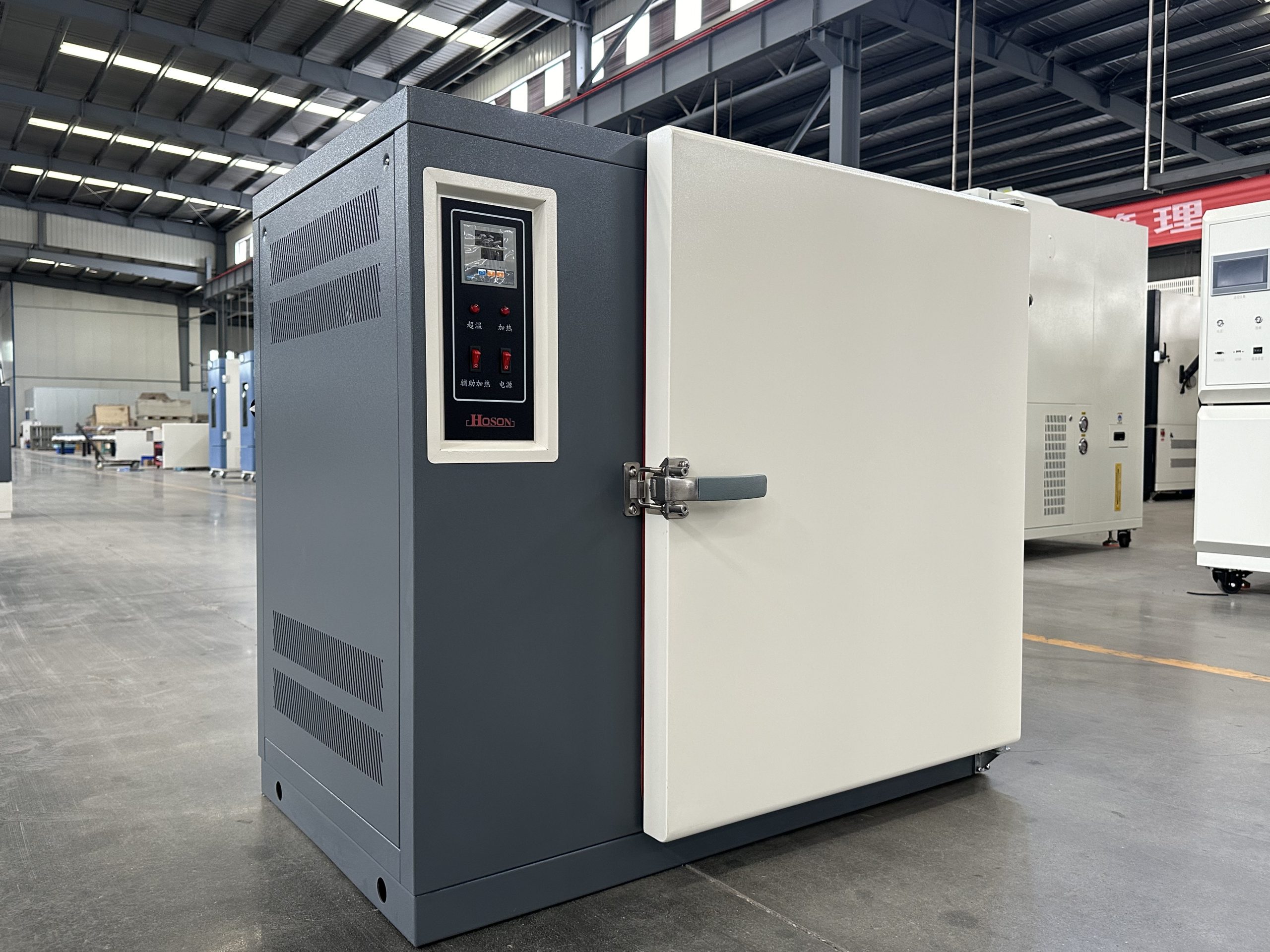

High Temperature Oven

Temperature Range: R.T.+10~300℃ Internal dimension: 225L, 400L, 640L or customized.

SKU: DGF Category:
General Details

High Temperature Oven Uses

1. This chamber is designed for drying, baking and heat treatment tests for non-flammable, non-explosive materials performed by Electronics, electrical, instrument, material, semiconductor manufacturing enterprises.

2. It is particularly suitable for products such as LED, LCD, quartz crystal, capacitors, resistors and other products which demands constant temperature precision and high reliability drying and aging during the process of production.

High Temperature Oven Features

1.Human input parameters, easy to set up, simultaneous display the set temperature and the measured temperature.
2.Unique assembly design result in a more reasonable case structure.



High Temperature Oven Parameters

Model                                                  DGF
302N 302BN 3004N 3004BN 3006N 3006BN
Temperature range R.T+10~300ºC
Temperature fluctuation ±0.5ºC
Temperature uniformity ±2.5%ºC
Maximum temperature arrival time 70min
Timing 0~999mins
Temperature sensor PT100 Platinum resistor
External material Anti-rust cold-roll steel sheet with electrostatic spraying.
Internal material SUS304 stainless steel plate.
Insulation materials Ultra-fine fiberglass
Heater Nickel Chrome electric heater
Door seal Eco-friendly silicone rubber
Internal space dimension 500×600×750 700×700×800 800×800×1000
Internal volume 225L 392L 640L
External dimension 670×1065×960 870×1165×1020 970×1265×1290
Power(KW) 3 4 6
Power supply AV  220V 50Hz
Standard configuration 2 PCS shelves
Remark Inside and outside dimensions labeled: Depth D × Width W × Height H

High Temperature Oven Advantages

1. 16 years testing equipment manufacturer.

2. Low wholesale price.

3. Small MOQ is available.

4. One-stop testing solution provider.

5. ISO9001:2008/ GB/T 19001-2008 certificated factory.



Our Service

1. 12 months warranty.

2. 24-hour online service.

3. Product pictures could be offered before delivery.

4. Products performance will be tested before shipping.

5. Permanent technical support.



Packing & Delivery

Plastic film entwined, then put into wooden case, which can meet the export standard.
